Food packaging gravure printing ink without tolu

Japan's food industry and gravure printing industry trends:

In December 1993, the amount of toluene residue detected in overseas imported cakes and bags was 230 ppm and 70 ppm, respectively, and they were recycled. The residual amount of toluene detected from domestically produced confectionery is 35 to 41 ppm.

January 1994 The Japan Pastry Association issued a circular on the thorough management of printed products.

September 1995 The Japan Gravure Printing Industry Federation distributed the "Promoting Benzene-free" proposal.

3, gravure ink environmental measures

1) Influence of solvents on the environment

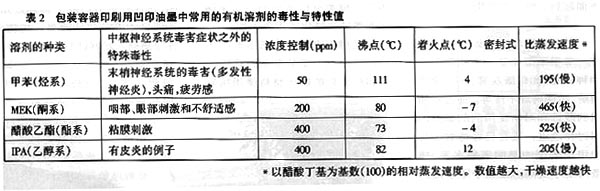

As mentioned above, since the Labor Safety and Health Act and the PL Act were implemented in 1995, it was expected that no toluene ink would be introduced. Toluene-free inks, which can be used in existing printing equipment, are consistent with the needs of the market and are now rapidly gaining popularity. The gravure ink solvent formulation is generally used by combining various solvents into a mixed solvent according to requirements such as solubility, drying property, cost, and the like. The characteristics and toxicity of the main organic solvents used for gravure inks are shown in Table 2. Although organic solvents that are carcinogenic are not used, some of them cause symptoms such as central nervous system poisoning.

Toluene, one of the solvents listed in Table 2, removes the hygienic property, in the following aspects: (1) the solubility of the resins and additives used in the ink; 2 the drying performance when printing; 3 the cost is ideal The solvent. In contrast, MEK (ketone-based) and ethyl acetate (ester-based) solvents perform well and dry quickly. IPA (alcohol-based) has the same drying performance as toluene but has poor solubility. No matter what kind of solvent is higher than toluene in cost.

2) Technical problems without toluene

If the toluene in the ink is simply replaced with other solvents, the chemical compatibility and printing of the original ink should be ensured in terms of the stability of the ink and the reproducibility of the tone compared with the original toluene ink. There is difficulty in adaptability, and the plate is prone to fog. As described above, the use of non-toluene solvents results in reduced solubility and slower drying speeds. For the development of non-toluene type inks, it is very important to study the resins and solvents used in the inks. The use of mixed solvents for resins (hydrocarbons, ketones, esters, alcohols) should be such that they have the same solubility as toluene. In addition, the solvent composition should be such that the toluene solvent has the same drying speed. In addition to careful selection of hydrocarbons, ketones, esters, and alcohols, it is also necessary to consider various solvents. The volatilization speed and the solvent balance during printing are not destroyed.
(to be continued)
